SMS 120

Thumbnail Image 1

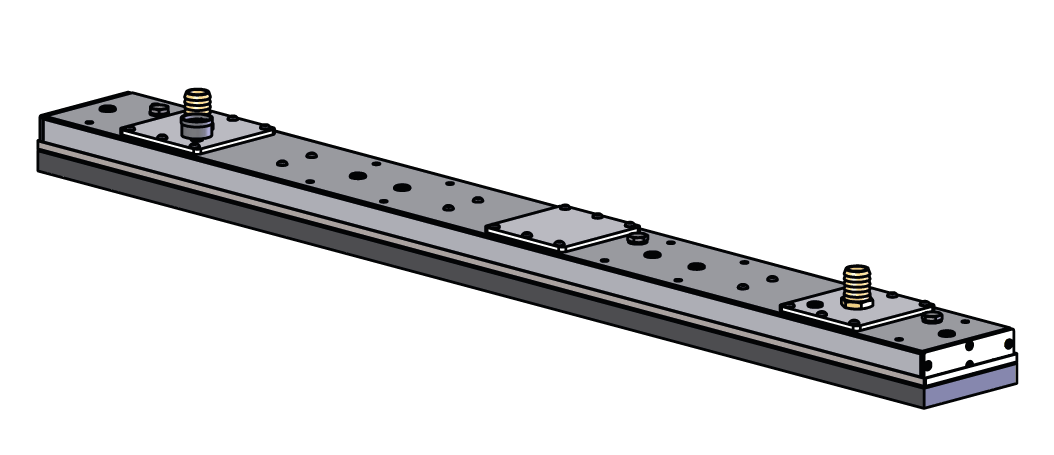

Main Structure

SMS 120 is based on a 120mm profile containing the intelligent UniGripper valves. below is a foam carrier assembly which creates optimal maintainability. On top of the profile various options for vacuum genaration can be mounted. Click on picture to enlarge.

Thumbnail Image 1

ValVe Configurations

SMS 120 is available in three different valve configurations. Each valve pitch is associated with a standard foam pad design, as shown in picture (click to enlarge).

Thumbnail Image 1

Vacuum Generation

Each length of the SMS unit has one or more locations where vacuum pumps can be connected. Either vacuum pumps can be mounted directly on the gripper or hose connections can be used to connect to extrnal vacuum pump. Click on picture to see standard options.

Thumbnail Image 1

Hights and Side dimensions

All lengths of the SMS 120 series have the same side dimensions and heights, as detailed in picture above (click to enlarge).

  • 120/300
  • 120/400
  • 120/600
  • 120/800
  • 120/1000
  • 120/1200
  • 120/1400


All measures in mm, x= 18mm for SMS 120/15.20 and 120/20, x=13mm for SMS 120/30, y=90mm for SMS 120/15.20 and SMS 120/20, y=100mm for SMS 120/30

Technical data SMS 120/200/15.20/20 SMS 120/200/20/20 SMS 120/200/30/20
Length (mm) 206 206 206
Width (mm) 126 126 126
Height with ejectors (mm) N/A N/A N/A
Height with hose connection (mm) 103 103 103
Weight with ejectors (kg) N/A N/A N/A
Weight with hose connection (kg) 1.3 1.3 1.3
Number of valves 69 54 24
Theoretical lifting force (N), all gripper covered
@200mBar 69 122 117
@400mBar 138 244 235
@600mBar 208 366 353
@800mBar 277 488 471
Number of ejectors on gripper N/A N/A N/A
Air consumption (Nl/min @ 6 bar) N/A N/A N/A
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/200/15.20/20 SMS 120/200/20/20 SMS 120/200/30/20
-H1 300 200 110 300 200 210 300 200 310
-E N/A N/A N/A
-ES N/A N/A N/A
-ER N/A N/A N/A
Spare parts article numbers SMS 120/200/15.20/20 SMS 120/200/20/20 SMS 120/200/30/20
Foam pad 330 200 112 330 200 212 330 200 312
Filter cassette 330 200 119 330 200 219 330 200 319
Foam carrier assembly, incl. Filter cassette 320 200 113 320 200 213 320 200 313
Foam carrier assembly, excl. Filter cassette 320 200 114 320 200 214 320 200 314
Technical data SMS 120/200/15.20/20 SMS 120/200/20/20 SMS 120/200/30/20
Length (in) 8.2 8.2 8.2
Width (in) 5 5 5
Height with ejectors (in) N/A N/A N/A
Height with hose connection (in) 4.1 4.1 4.1
Weight with ejectors (lbs) N/A N/A N/A
Weight with hose connection (lbs) 2.9 2.9 2.9
Number of valves 69 54 24
Theoretical lifting force (lbf), all gripper covered
@6 in HG 15 27 26
@12 in HG 31 54 52
@18 in HG 46 82 79
@24 in HG 62 109 105
Number of ejectors on gripper N/A N/A N/A
Air consumption (SCFM @ 87 psi) N/A N/A N/A
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/200/15.20/20 SMS 120/200/20/20 SMS 120/200/30/20
-H1 300 200 110 300 200 210 300 200 310
-E N/A N/A N/A
-ES N/A N/A N/A
-ER N/A N/A N/A
Spare parts article numbers SMS 120/200/15.20/20 SMS 120/200/20/20 SMS 120/200/30/20
Foam pad 330 200 112 330 200 212 330 200 312
Filter cassette 330 200 119 330 200 219 330 200 319
Foam carrier assembly, incl. Filter cassette 320 200 113 320 200 213 320 200 313
Foam carrier assembly, excl. Filter cassette 320 200 114 320 200 214 320 200 314

All measures in mm, x= 18mm for SMS 120/15.20 and 120/20, x=13mm for SMS 120/30, y=90mm for SMS 120/15.20 and SMS 120/20, y=100mm for SMS 120/30

Technical data SMS 120/300/15.20/20 SMS 120/300/20/20 SMS 120/300/30/20
Length (mm) 306 306 306
Width (mm) 126 126 126
Height with ejectors (mm) 112 112 112
Height with hose connection (mm) 103 103 103
Weight with ejectors (kg) 2.8 2.8 2.8
Weight with hose connection (kg) 1.9 1.9 1.9
Number of valves 108 84 40
Theoretical lifting force (N), all gripper covered
@200mBar 108 190 196
@400mBar 217 380 392
@600mBar 325 570 589
@800mBar 434 760 785
Number of ejectors on gripper 1 1 1
Air consumption (Nl/min @ 6 bar) 420 315 210
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/300/15.20/20 SMS 120/300/20/20 SMS 120/300/30/20
-H1 300 300 110 300 300 210 300 300 310
-E 300 300 112 300 300 212 300 300 312
-ES 300 300 113 300 300 213 300 300 313
-ER 300 300 111 300 300 211 300 300 311
Spare parts article numbers SMS 120/300/15.20/20 SMS 120/300/20/20 SMS 120/300/30/20
Foam pad 330 300 112 330 300 212 330 300 312
Filter cassette 330 300 119 330 300 219 330 300 319
Foam carrier assembly, incl. Filter cassette 320 300 113 320 300 213 320 300 313
Foam carrier assembly, excl. Filter cassette 320 300 114 320 300 214 320 300 314
Technical data SMS 120/300/15.20/20 SMS 120/300/20/20 SMS 120/300/30/20
Length (in) 12.1 12.1 12.1
Width (in) 5 5 5
Height with ejectors (in) 4.5 4.5 4.5
Height with hose connection (in) 4.1 4.1 4.1
Weight with ejectors (lbs) 6.2 6.2 6.2
Weight with hose connection (lbs) 4.2 4.2 4.2
Number of valves 69 54 24
Theoretical lifting force (lbf), all gripper covered
@6 in HG 24 42 44
@12 in HG 48 85 88
@18 in HG 73 128 132
@24 in HG 97 170 176
Number of ejectors on gripper 1 1 1
Air consumption (SCFM @ 87 psi) 14.9 11.2 7.5
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/300/15.20/20 SMS 120/300/20/20 SMS 120/300/30/20
-H1 300 300 110 300 300 210 300 300 310
-E 300 300 112 300 300 212 300 300 312
-ES 300 300 113 300 300 213 300 300 313
-ER 300 300 111 300 300 211 300 300 311
Spare parts article numbers SMS 120/300/15.20/20 SMS 120/300/20/20 SMS 120/300/30/20
Foam pad 330 300 112 330 300 212 330 300 312
Filter cassette 330 300 119 330 300 219 330 300 319
Foam carrier assembly, incl. Filter cassette 320 300 113 320 300 213 320 300 313
Foam carrier assembly, excl. Filter cassette 320 300 114 320 300 214 320 300 314

All measures in mm, x= 18mm for SMS 120/15.20 and 120/20, x=13mm for SMS 120/30, y=90mm for SMS 120/15.20 and SMS 120/20, y=100mm for SMS 120/30

Technical data SMS 120/400/15.20/20 SMS 120/400/20/20 SMS 120/400/30/20
Length (mm) 406 406 406
Width (mm) 126 126 126
Height with ejectors (mm) 112 112 112
Height with hose connection (mm) 103 103 103
Weight with ejectors (kg) 3.5 3.5 3.5
Weight with hose connection (kg) 2.6 2.6 2.6
Number of valves 150 114 52
Theoretical lifting force (N), all gripper covered
@200mBar 150 257 255
@400mBar 301 515 510
@600mBar 452 773 765
@800mBar 603 1031 1021
Number of ejectors on gripper 1 1 1
Air consumption (Nl/min @ 6 bar) 420 420 210
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/400/15.20/20 SMS 120/400/20/20 SMS 120/400/30/20
-H1 300 400 110 300 400 210 300 400 310
-H2 300400114 300400214 300400314
-E 300 400 112 300 400 212 300 400 312
-ES 300 400 113 300 400 213 300 400 313
-ER 300 400 111 300 400 211 300 400 311
Spare parts article numbers SMS 120/400/15.20/20 SMS 120/400/20/20 SMS 120/400/30/20
Foam pad 330 400 112 330 400 212 330 400 312
Filter cassette 330 400 119 330 400 219 330 400 319
Foam carrier assembly, incl. Filter cassette 320 400 113 320 400 213 320 400 313
Foam carrier assembly, excl. Filter cassette 320 400 114 320 400 214 320 400 314
Technical data SMS 120/400/15.20/20 SMS 120/400/20/20 SMS 120/400/30/20
Length (in) 16 16 16
Width (in) 5 5 5
Height with ejectors (in) 4.5 4.5 4.5
Height with hose connection (in) 4.1 4.1 4.1
Weight with ejectors (lbs) 7.8 7.8 7.8
Weight with hose connection (lbs) 5.8 5.8 5.8
Number of valves 69 54 24
Theoretical lifting force (lbf), all gripper covered
@6 in HG 33 57 57
@12 in HG 67 115 114
@18 in HG 101 173 171
@24 in HG 135 231 229
Number of ejectors on gripper 1 1 1
Air consumption (SCFM @ 87 psi) 14.9 14.9 7.5
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/400/15.20/20 SMS 120/400/20/20 SMS 120/400/30/20
-H1 300 400 110 300 400 210 300 400 310
-H2 300400114 300400214 300400314
-E 300 400 112 300 400 212 300 400 312
-ES 300 400 113 300 400 213 300 400 313
-ER 300 400 111 300 400 211 300 400 311
Spare parts article numbers SMS 120/400/15.20/20 SMS 120/400/20/20 SMS 120/400/30/20
Foam pad 330 400 112 330 400 212 330 400 312
Filter cassette 330 400 119 330 400 219 330 400 319
Foam carrier assembly, incl. Filter cassette 320 400 113 320 400 213 320 400 313
Foam carrier assembly, excl. Filter cassette 320 400 114 320 400 214 320 400 314

All measures in mm, x= 18mm for SMS 120/15.20 and 120/20, x=13mm for SMS 120/30, y=90mm for SMS 120/15.20 and SMS 120/20, y=100mm for SMS 120/30

Technical data SMS 120/600/15.20/20 SMS 120/600/20/20 SMS 120/600/30/20
Length (mm) 606 606 606
Width (mm) 126 126 126
Height with ejectors (mm) 142 112 112
Height with hose connection (mm) 103 103 103
Weight with ejectors (kg) 5.4 4.5 4.5
Weight with hose connection (kg) 3.6 3.6 3.6
Number of valves 228 174 76
Theoretical lifting force (N), all gripper covered
@200mBar 229 393 373
@400mBar 458 787 746
@600mBar 687 1180 1119
@800mBar 916 1574 1492
Number of ejectors on gripper 2 1 1
Air consumption (Nl/min @ 6 bar) 735 420 315
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/600/15.20/20 SMS 120/600/20/20 SMS 120/600/30/20
-H1 300 600 110 300 600 210 300 600 310
-H2 300 600 114 300 600 214 300 600 214
-E 300 600 112 300 600 212 300 600 312
-ES 300 600 113 300 600 213 300 600 313
-ER 300 600 111 300 600 211 300 600 311
Spare parts article numbers SMS 120/600/15.20/20 SMS 120/600/20/20 SMS 120/600/30/20
Foam pad 330 600 112 330 600 212 330 600 312
Filter cassette 330 600 119 330 600 219 330 600 319
Foam carrier assembly, incl. Filter cassette 320 600 113 320 600 213 320 600 313
Foam carrier assembly, excl. Filter cassette 320 600 114 320 600 214 320 600 314
Technical data SMS 120/600/15.20/20 SMS 120/600/20/20 SMS 120/600/30/20
Length (in) 23.9 23.9 23.9
Width (in) 5 5 5
Height with ejectors (in) 5.6 4.5 4.5
Height with hose connection (in) 4.1 4.1 4.1
Weight with ejectors (lbs) 12 10 10
Weight with hose connection (lbs) 8 8 8
Number of valves 69 54 24
Theoretical lifting force (lbf), all gripper covered
@6 in HG 51 88 83
@12 in HG 102 176 167
@18 in HG 154 265 251
@24 in HG 205 353 335
Number of ejectors on gripper 2 1 1
Air consumption (SCFM @ 87 psi) 26 14.9 11.2
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/600/15.20/20 SMS 120/600/20/20 SMS 120/600/30/20
-H1 300 600 110 300 600 210 300 600 310
-H2 300 600 114 300 600 214 300 600 214
-E 300 600 112 300 600 212 300 600 312
-ES 300 600 113 300 600 213 300 600 313
-ER 300 600 111 300 600 211 300 600 311
Spare parts article numbers SMS 120/600/15.20/20 SMS 120/600/20/20 SMS 120/600/30/20
Foam pad 330 600 112 330 600 212 330 600 312
Filter cassette 330 600 119 330 600 219 330 600 319
Foam carrier assembly, incl. Filter cassette 320 600 113 320 600 213 320 600 313
Foam carrier assembly, excl. Filter cassette 320 600 114 320 600 214 320 600 314

All measures in mm, x= 18mm for SMS 120/15.20 and 120/20, x=13mm for SMS 120/30, y=90mm for SMS 120/15.20 and SMS 120/20, y=100mm for SMS 120/30

Technical data SMS 120/800/15.20/20 SMS 120/800/20/20 SMS 120/800/30/20
Length (mm) 806 806 806
Width (mm) 126 126 126
Height with ejectors (mm) 112 112 112
Height with hose connection (mm) 103 103 103
Weight with ejectors (kg) 6.6 6.6 5.7
Weight with hose connection (kg) 4.8 4.8 4.8
Number of valves 312 234 100
Theoretical lifting force (N), all gripper covered
@200mBar 313 529 490
@400mBar 627 1058 981
@600mBar 940 1587 1472
@800mBar 1254 2117 1963
Number of ejectors on gripper 2 2 1
Air consumption (Nl/min @ 6 bar) 840 735 315
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/800/15.20/20 SMS 120/800/20/20 SMS 120/800/30/20
-H1 300 800 110 300 800 210 300 800 310
-H2 300 800 114 300 800 214 300 800 314
-E 300 800 112 300 800 212 300 800 312
-ES 300 800 113 300 800 213 300 800 313
-ER 300 800 111 300 800 211 300 800 311
Spare parts article numbers SMS 120/800/15.20/20 SMS 120/800/20/20 SMS 120/800/30/20
Foam pad 330 800 112 330 800 212 330 800 312
Filter cassette 330 800 119 330 800 219 330 800 319
Foam carrier assembly, incl. Filter cassette 320 800 113 320 800 213 320 800 313
Foam carrier assembly, excl. Filter cassette 320 800 114 320 800 214 320 800 314
Technical data SMS 120/800/15.20/20 SMS 120/800/20/20 SMS 120/800/30/20
Length (in) 31.8 31.8 31.8
Width (in) 5 5 5
Height with ejectors (in) 4.5 4.5 4.5
Height with hose connection (in) 4.1 4.1 4.1
Weight with ejectors (lbs) 14.6 14.6 12.6
Weight with hose connection (lbs) 10.6 10.6 10.6
Number of valves 69 54 24
Theoretical lifting force (lbf), all gripper covered
@6 in HG 70 118 110
@12 in HG 140 237 220
@18 in HG 211 356 330
@24 in HG 281 475 441
Number of ejectors on gripper 2 2 1
Air consumption (SCFM @ 87 psi) 29.7 26 11.2
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/800/15.20/20 SMS 120/800/20/20 SMS 120/800/30/20
-H1 300 800 110 300 800 210 300 800 310
-H2 300 800 114 300 800 214 300 800 314
-E 300 800 112 300 800 212 300 800 312
-ES 300 800 113 300 800 213 300 800 313
-ER 300 800 111 300 800 211 300 800 311
Spare parts article numbers SMS 120/800/15.20/20 SMS 120/800/20/20 SMS 120/800/30/20
Foam pad 330 800 112 330 800 212 330 800 312
Filter cassette 330 800 119 330 800 219 330 800 319
Foam carrier assembly, incl. Filter cassette 320 800 113 320 800 213 320 800 313
Foam carrier assembly, excl. Filter cassette 320 800 114 320 800 214 320 800 314

All measures in mm, x= 18mm for SMS 120/15.20 and 120/20, x=13mm for SMS 120/30, y=90mm for SMS 120/15.20 and SMS 120/20, y=100mm for SMS 120/30

Technical data SMS 120/1000/15.20/20 SMS 120/1000/20/20 SMS 120/1000/30/20
Length (mm) 1006 1006 1006
Width (mm) 126 126 126
Height with ejectors (mm) 112 112 112
Height with hose connection (mm) 103 103 103
Weight with ejectors (kg) 8.0 8.0 7.1
Weight with hose connection (kg) 6.2 6.2 6.2
Number of valves 384 294 132
Theoretical lifting force (N), all gripper covered
@200mBar 386 665 647
@400mBar 772 1330 1295
@600mBar 1158 1995 1943
@800mBar 1544 2660 2591
Number of ejectors on gripper 2 2 1
Air consumption (Nl/min @ 6 bar) 840 840 420
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/1000/15.20/20 SMS 120/1000/20/20 SMS 120/1000/30/20
-H1 301 000 110 301 000 210 301 000 310
-H2 301 000 114 301 000 214 301 000 314
-E 301 000 112 301 000 212 301 000 312
-ES 301 000 113 301 000 213 301 000 313
-ER 301 000 111 301 000 211 301 000 311
Spare parts article numbers SMS 120/1000/15.20/20 SMS 120/1000/20/20 SMS 120/1000/30/20
Foam pad 331 000 112 331 000 212 331 000 312
Filter cassette 331 000 119 331 000 219 331 000 319
Foam carrier assembly, incl. Filter cassette 321 000 113 321 000 213 321 000 313
Foam carrier assembly, excl. Filter cassette 321 000 114 321 000 214 321 000 314
Technical data SMS 120/1000/15.20/20 SMS 120/1000/20/20 SMS 120/1000/30/20
Length (in) 39.7 39.7 39.7
Width (in) 5 5 5
Height with ejectors (in) 4.5 4.5 4.5
Height with hose connection (in) 4.1 4.1 4.1
Weight with ejectors (lbs) 17.7 17.7 15.7
Weight with hose connection (lbs) 13.7 13.7 13.7
Number of valves 69 54 24
Theoretical lifting force (lbf), all gripper covered
@6 in HG 86 149 145
@12 in HG 173 298 291
@18 in HG 260 448 436
@24 in HG 347 597 582
Number of ejectors on gripper 2 2 1
Air consumption (SCFM @ 87 psi) 29.7 29.7 14.9
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/1000/15.20/20 SMS 120/1000/20/20 SMS 120/1000/30/20
-H1 301 000 110 301 000 210 301 000 310
-H2 301 000 114 301 000 214 301 000 314
-E 301 000 112 301 000 212 301 000 312
-ES 301 000 113 301 000 213 301 000 313
-ER 301 000 111 301 000 211 301 000 311
Spare parts article numbers SMS 120/1000/15.20/20 SMS 120/1000/20/20 SMS 120/1000/30/20
Foam pad 331 000 112 331 000 212 331 000 312
Filter cassette 331 000 119 331 000 219 331 000 319
Foam carrier assembly, incl. Filter cassette 321 000 113 321 000 213 321 000 313
Foam carrier assembly, excl. Filter cassette 321 000 114 321 000 214 321 000 314

All measures in mm, x= 18mm for SMS 120/15.20 and 120/20, x=13mm for SMS 120/30, y=90mm for SMS 120/15.20 and SMS 120/20, y=100mm for SMS 120/30

Technical data SMS 120/1200/15.20/20 SMS 120/1200/20/20 SMS 120/1200/30/20
Length (mm) 1206 1206 1206
Width (mm) 126 126 126
Height with ejectors (mm) 112 112 112
Height with hose connection (mm) 103 103 103
Weight with ejectors (kg) 10.5 9.6 8.7
Weight with hose connection (kg) 6.9 6.9 6.9
Number of valves 465 354 156
Theoretical lifting force (N), all gripper covered
@200mBar 467 800 765
@400mBar 934 1601 1531
@600mBar 1402 2402 2297
@800mBar 1869 3202 3063
Number of ejectors on gripper 4 3 2
Air consumption (Nl/min @ 6 bar) 1365 1050 525
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/1200/15.20/20 SMS 120/1200/20/20 SMS 120/1200/30/20
-H1 301 200 110 301 200 210 301 200 310
-H2 301 200 114 301 200 214 301 200 314
-E 301 200 112 301 200 212 301 200 312
-ES 301 200 113 301 200 213 301 200 313
-ER 301 200 111 301 200 211 301 200 311
Spare parts article numbers SMS 120/1200/15.20/20 SMS 120/1200/20/20 SMS 120/1200/30/20
Foam pad 331 200 112 331 200 212 331 200 312
Filter cassette 331 200 119 331 200 219 331 200 319
Foam carrier assembly, incl. Filter cassette 321 200 113 321 200 213 321 200 313
Foam carrier assembly, excl. Filter cassette 321 200 114 321 200 214 321 200 314
Technical data SMS 120/1200/15.20/20 SMS 120/1200/20/20 SMS 120/1200/30/20
Length (in) 47.5 47.5 47.5
Width (in) 5 5 5
Height with ejectors (in) 4.5 4.5 4.5
Height with hose connection (in) 4.1 4.1 4.1
Weight with ejectors (lbs) 23.2 21.2 19.2
Weight with hose connection (lbs) 15.3 15.3 15.3
Number of valves 69 54 24
Theoretical lifting force (lbf), all gripper covered
@6 in HG 104 179 171
@12 in HG 209 359 344
@18 in HG 315 539 516
@24 in HG 420 719 688
Number of ejectors on gripper 4 3 2
Air consumption (SCFM @ 87 psi) 48.2 37.1 18.6
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/1200/15.20/20 SMS 120/1200/20/20 SMS 120/1200/30/20
-H1 301 200 110 301 200 210 301 200 310
-H2 301 200 114 301 200 214 301 200 314
-E 301 200 112 301 200 212 301 200 312
-ES 301 200 113 301 200 213 301 200 313
-ER 301 200 111 301 200 211 301 200 311
Spare parts article numbers SMS 120/1200/15.20/20 SMS 120/1200/20/20 SMS 120/1200/30/20
Foam pad 331 200 112 331 200 212 331 200 312
Filter cassette 331 200 119 331 200 219 331 200 319
Foam carrier assembly, incl. Filter cassette 321 200 113 321 200 213 321 200 313
Foam carrier assembly, excl. Filter cassette 321 200 114 321 200 214 321 200 314

All measures in mm, x= 18mm for SMS 120/15.20 and 120/20, x=13mm for SMS 120/30, y=90mm for SMS 120/15.20 and SMS 120/20, y=100mm for SMS 120/30

Technical data SMS 120/1400/15.20/20 SMS 120/1400/20/20 SMS 120/1400/30/20
Length (mm) 1406 1406 1406
Width (mm) 126 126 126
Height with ejectors (mm) 112 112 112
Height with hose connection (mm) 103 103 103
Weight with ejectors (kg) N/A N/A 10.4
Weight with hose connection (kg) 8.6 8.6 8.6
Number of valves 543 414 184
Theoretical lifting force (N), all gripper covered
@200mBar 545 936 903
@400mBar 1091 1872 1806
@600mBar 1637 2809 2709
@800mBar 2183 3745 3612
Number of ejectors on gripper N/A N/A 2
Air consumption (Nl/min @ 6 bar) N/A N/A 630
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/1400/15.20/20 SMS 120/1400/20/20 SMS 120/1400/30/20
-H1 301 400 110 301 400 210 301 400 310
-H2 301 400 114 301 400 214 301 400 314
-E N/A N/A 301 400 312
-ES N/A N/A 301 400 313
-ER N/A N/A 301 400 311
Spare parts article numbers SMS 120/1400/15.20/20 SMS 120/1400/20/20 SMS 120/1400/30/20
Foam pad 331 400 112 331 400 212 331 400 312
Filter cassette 331 400 119 331 400 219 331 400 319
Foam carrier assembly, incl. Filter cassette 321 400 113 321 400 213 321 400 313
Foam carrier assembly, excl. Filter cassette 321 400 114 321 400 214 321 400 314
Technical data SMS 120/1400/15.20/20 SMS 120/1400/20/20 SMS 120/1400/30/20
Length (in) 55.4 55.4 55.4
Width (in) 5 5 5
Height with ejectors (in) 4.5 4.5 4.5
Height with hose connection (in) 4.1 4.1 4.1
Weight with ejectors (lbs) N/A N/A 23
Weight with hose connection (lbs) 19 19 19
Number of valves 69 54 24
Theoretical lifting force (lbf), all gripper covered
@6 in HG 122 210 203
@12 in HG 245 420 406
@18 in HG 368 631 609
@24 in HG 490 841 812
Number of ejectors on gripper N/A N/A 2
Air consumption (SCFM @ 87 psi) N/A N/A 22.3
3D STEP Files
With Ejector
With Hose Connection (H1)
Ordering Article Numbers SMS 120/1400/15.20/20 SMS 120/1400/20/20 SMS 120/1400/30/20
-H1 301 400 110 301 400 210 301 400 310
-H2 301 400 114 301 400 214 301 400 314
-E N/A N/A 301 400 312
-ES N/A N/A 301 400 313
-ER N/A N/A 301 400 311
Spare parts article numbers SMS 120/1400/15.20/20 SMS 120/1400/20/20 SMS 120/1400/30/20
Foam pad 331 400 112 331 400 212 331 400 312
Filter cassette 331 400 119 331 400 219 331 400 319
Foam carrier assembly, incl. Filter cassette 321 400 113 321 400 213 321 400 313
Foam carrier assembly, excl. Filter cassette 321 400 114 321 400 214 321 400 314
